Highlight
HDPE circular fish cage for aquaculture
,10m diameter fish farming cage
,50m aquaculture fish cage with warranty
-
Floating Pipe Diameter200mm/250mm/315mm/350mm/400mm
-
MaterialHDPE Pipe
-
ShapeRound
-
Diameter Range10m - 50m
-
Water Depth Range-6m To 50m
-
Wind Resistance12 Grade Typhoon
-
Wave Resistance7m
-
Current Resistance1.2m/s
-
Frame Lifespan15 Years
-
Circumference Range30m - 200m
-
Handrail Pipe Diameter90mm/110mm/125mm
-
Stand Pipe Diameter110mm/125mm
-
Square Cage Dimensions3m*3m To 30m*30m
-
Production Capacity6000 Sets/year
-
Mooring SystemGrid System
-
Minimum Order Quantity5
-
Price1000
HDPE Circular Fish Cage 10m-50m Diameter for Aquaculture Farming
Reliable, Heavy-Duty Aquaculture Cages – Best for Large-Scale Fish Farming
Environmental Friendly Fish Cage System for Fish Farming
Product Features
- Wide range of applications, suitable for water depths from 6m to 50m
- Exceptional wind resistance (up to 12-grade typhoon defense)
- Superior wave resistance (up to 7m waves) and current resistance (1.2m/s)
- Large aquaculture capacity with optimal living and growing space
- Durable construction with frame lifespan exceeding 15 years
- Easy net replacement system
- Constructed with marine-grade HDPE pipe - high strength, high toughness, anti-oxidant, and anti-aging properties
Structure Sketch
Technical Specifications
HDPE Round Floating Cage Frame Specifications
| Circumference (M) | Diameter of Floating Pipe (MM) | Diameter of Handrail Pipe (MM) | Diameter of Stand Pipe (MM) |
|---|---|---|---|
| 30 | 200mm | 90mm | 110mm |
| 40 | 200mm/250mm | 90mm/110mm | 110mm/125mm |
| 50 | 250mm | 110mm | 125mm |
| 60 | 250mm/315mm | 110mm | 125mm |
| 70 | 315mm | 110mm/125mm | 125mm |
| 80 | 315mm | 110mm/125mm | -- |
| 90 | 350mm | 125mm | -- |
| 100 | 350mm/400mm | 125mm | -- |
| 120 | 350mm/400mm | 125mm | -- |
| 150 | 350mm/400mm | 125mm | -- |
| 200 | 400mm | 125mm | -- |
HDPE Square Floating Cage Frame Specifications
| L*W (M) | Diameter of Floating Pipe (MM) | Diameter of Handrail Pipe (MM) | Diameter of Stand Pipe (MM) |
|---|---|---|---|
| 3m * 3m | 200mm | 90mm | 110mm |
| 4m * 4m | 200mm | 90mm | 110mm |
| 5m * 5m | 200mm | 90mm | 110mm |
| 6m * 6m | 200mm/250mm | 90mm/110mm | 110mm/125mm |
| 7m * 7m | 250mm/315mm | 110mm | 125mm |
| 8m * 8m | 250mm/315mm | 110mm | 125mm |
| 9m * 9m | 250mm/315mm | 110mm | 125mm |
| 10m * 10m | 315mm | 110mm | 125mm |
| 12m * 12m | 315mm/350mm | 110mm/125mm | 125mm/-- |
| 15m * 15m | 315mm/350mm | 110mm/125mm | 125mm/-- |
| 20m * 20m | 350mm/400mm | 125mm | -- |
| 30m * 30m | 350mm/400mm | 125mm | -- |
Mooring System
Our advanced "Grid" mooring system is designed for deep sea or freshwater applications. Constructed with high-strength ropes and shackles, the cages are secured within the grid and fixed by ropes. This innovative design unites multiple cages as one cohesive group - when one cage moves, all connected cages move in unison. This interconnected system prevents destructive collisions between cages, even in challenging sea conditions.

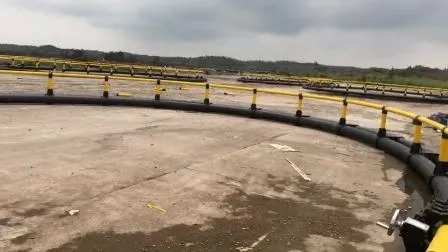

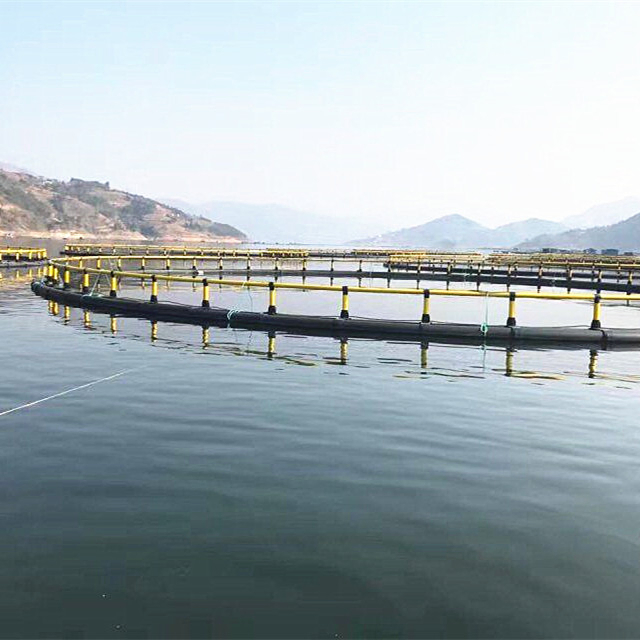

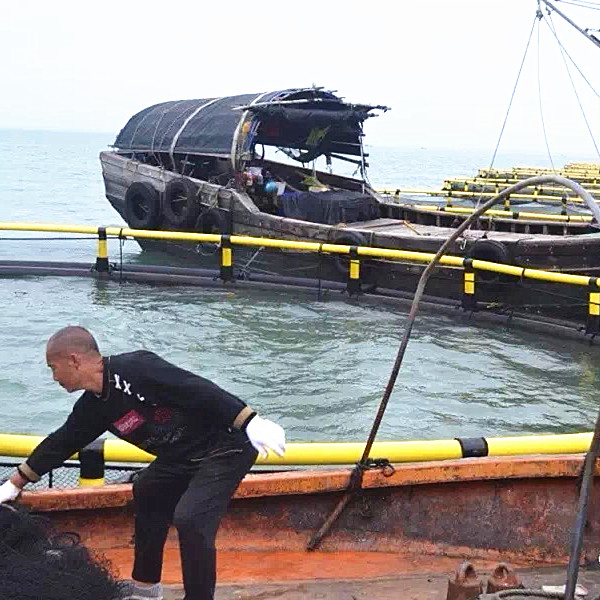

Product Showcase
