Highlight
HDPE floating fish cage
,anti-typhoon fish cage
,circular fish cage 10m-50m
-
Model NO.NFW001
-
Working MethodFriction Type
-
Power SourceElectric
-
Harvesting Machinery TypeFishing Winch
-
Fishing MethodTrawling Machinery
-
Fishing Gear Winch TypeNet Hauler
-
Fishing Auxiliary Machinery TypeAuxiliary Winch
-
Floating Pipe Diameter200mm/250mm/315mm/350mm/400mm
-
MaterialHDPE Pipe
-
ShapeRound
-
Diameter Range10m - 50m
-
Production Capacity6000sets/Year
-
Max Wind Resistance12 Grade
-
Max Wave Resistance7m
-
Max Current Resistance1.2m/s
-
CertificationCE, ISO9001:2008
-
Minimum Order Quantity5
-
Price1000
HDPE Floating Fish Cage 10m-50m Diameter Anti-Typhoon Design
2024 New Aquaculture Fish Cage Floating HDPE
Product Features
Nanfengwang cage has strong anti-wind, anti-current, and anti-wave capabilities. Made from new HDPE pipe material, ensuring long lifespan with large capacity and high survival rate.
- Wide application range: suitable for water depths from -6m to 50m
- Exceptional wind resistance: withstands up to grade 12 typhoons
- Superior wave resistance: handles waves up to 7m
- Strong current resistance: withstands currents up to 1.2m/s
- Large aquaculture capacity with ample living and growing space
- Long lifespan: frame lasts over 15 years
- Easy net replacement system
- Marine-grade HDPE pipe material: high strength, toughness, anti-oxidant, and anti-aging properties
Structure Sketch
Technical Specifications
HDPE Round Floating Cage Frame Specifications
| Circumference (M) | Diameter of Floating Pipe (MM) | Diameter of Handrail Pipe (MM) | Diameter of Stand Pipe (MM) |
|---|---|---|---|
| 30 | 200mm | 90mm | 110mm |
| 40 | 200mm/250mm | 90mm/110mm | 110mm/125mm |
| 50 | 250mm | 110mm | 125mm |
| 60 | 250mm/315mm | 110mm | 125mm |
| 70 | 315mm | 110mm/125mm | 125mm |
| 80 | 315mm | 110mm/125mm | -- |
| 90 | 350mm | 125mm | -- |
| 100 | 350mm/400mm | 125mm | -- |
| 120 | 350mm/400mm | 125mm | -- |
| 150 | 350mm/400mm | 125mm | -- |
| 200 | 400mm | 125mm | -- |
HDPE Square Floating Cage Frame Specifications
| L*W (M) | Diameter of Floating Pipe (MM) | Diameter of Handrail Pipe (MM) | Diameter of Stand Pipe (MM) |
|---|---|---|---|
| 3m * 3m | 200mm | 90mm | 110mm |
| 4m * 4m | 200mm | 90mm | 110mm |
| 5m * 5m | 200mm | 90mm | 110mm |
| 6m * 6m | 200mm/250mm | 90mm/110mm | 110mm/125mm |
| 7m * 7m | 250mm/315mm | 110mm | 125mm |
| 8m * 8m | 250mm/315mm | 110mm | 125mm |
| 9m * 9m | 250mm/315mm | 110mm | 125mm |
| 10m * 10m | 315mm | 110mm | 125mm |
| 12m * 12m | 315mm/350mm | 110mm/125mm | 125mm/-- |
| 15m * 15m | 315mm/350mm | 110mm/125mm | 125mm/-- |
| 20m * 20m | 350mm/400mm | 125mm | -- |
| 30m * 30m | 350mm/400mm | 125mm | -- |
Mooring System
Our advanced "Grid" mooring system is designed for deep sea or freshwater applications. Constructed with ropes and shackles, the cages are secured within the grid. This interconnected system ensures all cages move uniformly, preventing destructive collisions even in challenging sea conditions.

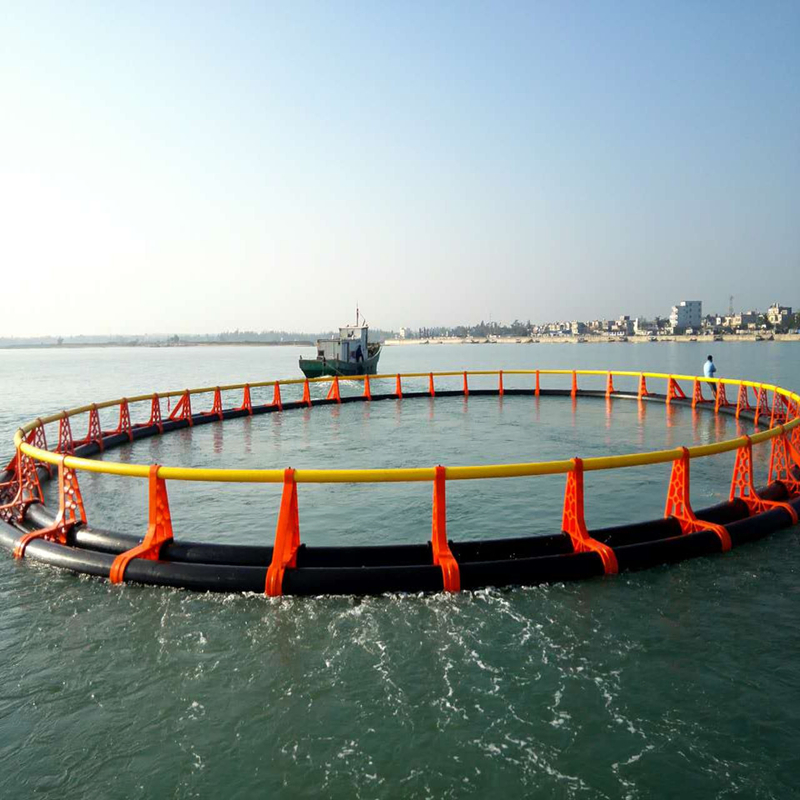

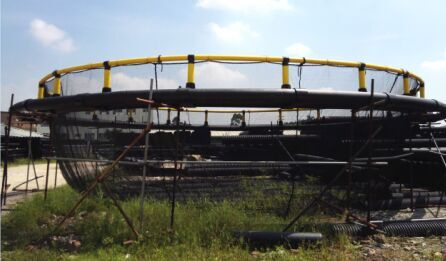

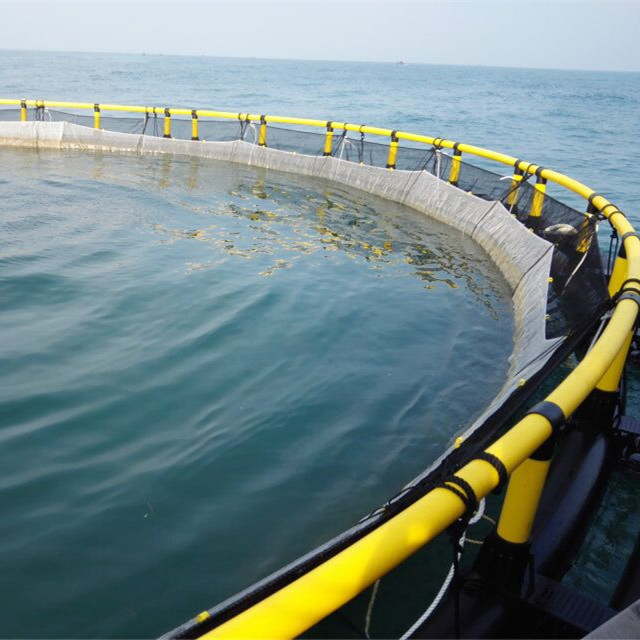

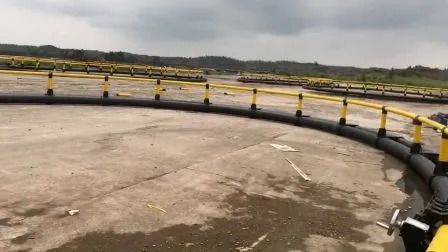

Product Showcase
