Highlight
HDPE floating fish cage with pipe
,circular fish cage 10m-50m diameter
,fish cage with 200mm-400mm pipe
-
Floating Pipe Diameter200mm/250mm/315mm/350mm/400mm
-
MaterialHDPE Pipe
-
ShapeRound
-
Diameter Range10m - 50m
-
Water Depth-6m To 50m
-
Wind Resistance12 Grade
-
Wave Resistance7m
-
Current Resistance1.2m/s
-
Frame Lifespan15 Years
-
Circumference30m - 200m
-
Handrail Pipe Diameter90mm/110mm/125mm
-
Stand Pipe Diameter110mm/125mm
-
Square Cage Dimensions3m*3m - 30m*30m
-
Production Capacity6000sets/Year
-
Mooring SystemGrid System
-
Minimum Order Quantity1
-
Price2000

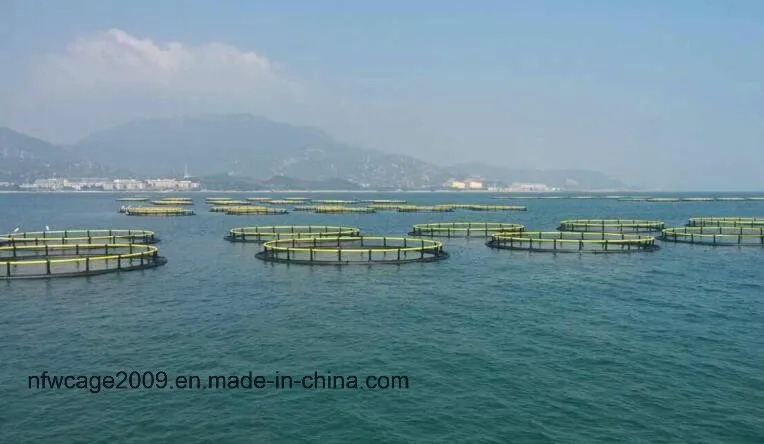

HDPE Floating Fish Cage 10m-50m Diameter with 200mm-400mm Pipe
Environmental Friendly Floating Cage System for Fish Farming
Nanfengwang cage features: Strong anti-wind, anti-current, and anti-wave capabilities. Made of durable HDPE pipe material for long service life, with large capacity and high survival rate.
Key Features
- Wide application range: suitable for water depths from 6m to 50m
- Exceptional wind resistance: withstands up to grade 12 typhoons
- Superior wave resistance: handles waves up to 7m high
- Strong current resistance: withstands currents up to 1.2m/s
- Large aquaculture capacity with ample living and growing space
- Long service life: cage frame lasts over 15 years
- Easy net replacement system
- Constructed with marine-grade HDPE pipe: high strength, toughness, and anti-aging properties
Structure Diagram
Technical Specifications
HDPE Round Floating Cage Frame
| Circumference (M) | Diameter of Floating Pipe (MM) | Diameter of Handrail Pipe (MM) | Diameter of Stand Pipe (MM) |
|---|---|---|---|
| 30 | 200 | 90 | 110 |
| 40 | 200/250 | 90/110 | 110/125 |
| 50 | 250 | 110 | 125 |
| 60 | 250/315 | 110 | 125 |
| 70 | 315 | 110/125 | 125 |
| 80 | 315 | 110/125 | -- |
| 90 | 350 | 125 | -- |
| 100 | 350/400 | 125 | -- |
| 120 | 350/400 | 125 | -- |
| 150 | 350/400 | 125 | -- |
| 200 | 400 | 125 | -- |
HDPE Square Floating Cage Frame
| L*W (M) | Diameter of Floating Pipe (MM) | Diameter of Handrail Pipe (MM) | Diameter of Stand Pipe (MM) |
|---|---|---|---|
| 3×3 | 200 | 90 | 110 |
| 4×4 | 200 | 90 | 110 |
| 5×5 | 200 | 90 | 110 |
| 6×6 | 200/250 | 90/110 | 110/125 |
| 7×7 | 250/315 | 110 | 125 |
| 8×8 | 250/315 | 110 | 125 |
| 9×9 | 250/315 | 110 | 125 |
| 10×10 | 315 | 110 | 125 |
| 12×12 | 315/350 | 110/125 | 125/-- |
| 15×15 | 315/350 | 110/125 | 125/-- |
| 20×20 | 350/400 | 125 | -- |
| 30×30 | 350/400 | 125 | -- |
Mooring System
Our "Grid" mooring system is designed for deep sea or freshwater applications. The system consists of ropes and shackles, with cages arranged in a grid pattern and secured by ropes. This configuration creates an interconnected group where movement of one cage affects all others, preventing destructive collisions between cages even in challenging sea conditions.
