Highlight
HDPE floating fish cage 10m-50m diameter
,circular fish farming cage 200mm-400mm pipe
,HDPE fish cage with durable pipe
-
Floating Pipe Diameter200mm/250mm/315mm/350mm/400mm
-
MaterialHDPE Pipe
-
ShapeRound
-
Diameter Range10m - 50m
-
Water Depth Range-6m To 50m
-
Wind Resistance12 Grade
-
Wave Resistance7m
-
Current Resistance1.2m/s
-
Frame Lifespan15 Years
-
Circumference Options30m, 40m, 50m, 60m, 70m, 80m, 90m, 100m, 120m, 150m, 200m
-
Handrail Pipe Diameter90mm/110mm/125mm
-
Stand Pipe Diameter110mm/125mm
-
Square Cage Dimensions3m*3m To 30m*30m
-
Production Capacity6000 Sets/year
-
Mooring SystemGrid System
-
Minimum Order Quantity10
-
Price1000
HDPE Fish Farming Floating Cage 10m-50m Diameter 200mm-400mm Pipe
Factory Wholesale Custom HDPE Fish Farming Floating Cage Aquaculture
Product Features
- Nanfengwang cage has strong anti-wind, anti-current, and anti-wave capabilities
- Constructed from new HDPE pipe material for extended lifespan
- Large capacity design promotes high survival rates
Key Advantages
- Wide application range: suitable for water depths from -6m to 50m
- Exceptional wind resistance: withstands up to grade 12 typhoons
- Superior wave resistance: handles waves up to 7m
- Strong current resistance: withstands currents up to 1.2m/s
- Spacious aquaculture capacity with ample living and growing space
- Long service life: frame lasts over 15 years
- Easy net replacement system
- Marine-grade HDPE pipe material: high strength, toughness, and anti-aging properties
Structure Sketch
Technical Specifications
HDPE Round Floating Cage Frame
| Circumference (M) | Diameter of Floating Pipe (MM) | Diameter of Handrail Pipe (MM) | Diameter of Stand Pipe (MM) |
|---|---|---|---|
| 30 | 200mm | 90mm | 110mm |
| 40 | 200mm/250mm | 90mm/110mm | 110mm/125mm |
| 50 | 250mm | 110mm | 125mm |
| 60 | 250mm/315mm | 110mm | 125mm |
| 70 | 315mm | 110mm/125mm | 125mm |
| 80 | 315mm | 110mm/125mm | -- |
| 90 | 350mm | 125mm | -- |
| 100 | 350mm/400mm | 125mm | -- |
| 120 | 350mm/400mm | 125mm | -- |
| 150 | 350mm/400mm | 125mm | -- |
| 200 | 400mm | 125mm | -- |
HDPE Square Floating Cage Frame
| L*W (M) | Diameter of Floating Pipe (MM) | Diameter of Handrail Pipe (MM) | Diameter of Stand Pipe (MM) |
|---|---|---|---|
| 3m * 3m | 200mm | 90mm | 110mm |
| 4m * 4m | 200mm | 90mm | 110mm |
| 5m * 5m | 200mm | 90mm | 110mm |
| 6m * 6m | 200mm/250mm | 90mm/110mm | 110mm/125mm |
| 7m * 7m | 250mm/315mm | 110mm | 125mm |
| 8m * 8m | 250mm/315mm | 110mm | 125mm |
| 9m * 9m | 250mm/315mm | 110mm | 125mm |
| 10m * 10m | 315mm | 110mm | 125mm |
| 12m * 12m | 315mm/350mm | 110mm/125mm | 125mm/-- |
| 15m * 15m | 315mm/350mm | 110mm/125mm | 125mm/-- |
| 20m * 20m | 350mm/400mm | 125mm | -- |
| 30m * 30m | 350mm/400mm | 125mm | -- |
Mooring System
Our mooring system utilizes a "Grid" configuration for deep sea or freshwater applications. The system consists of ropes and shackles, with cages secured within the grid. This design creates an interconnected group where movement of one cage affects all others, preventing destructive collisions between cages even in adverse sea conditions.

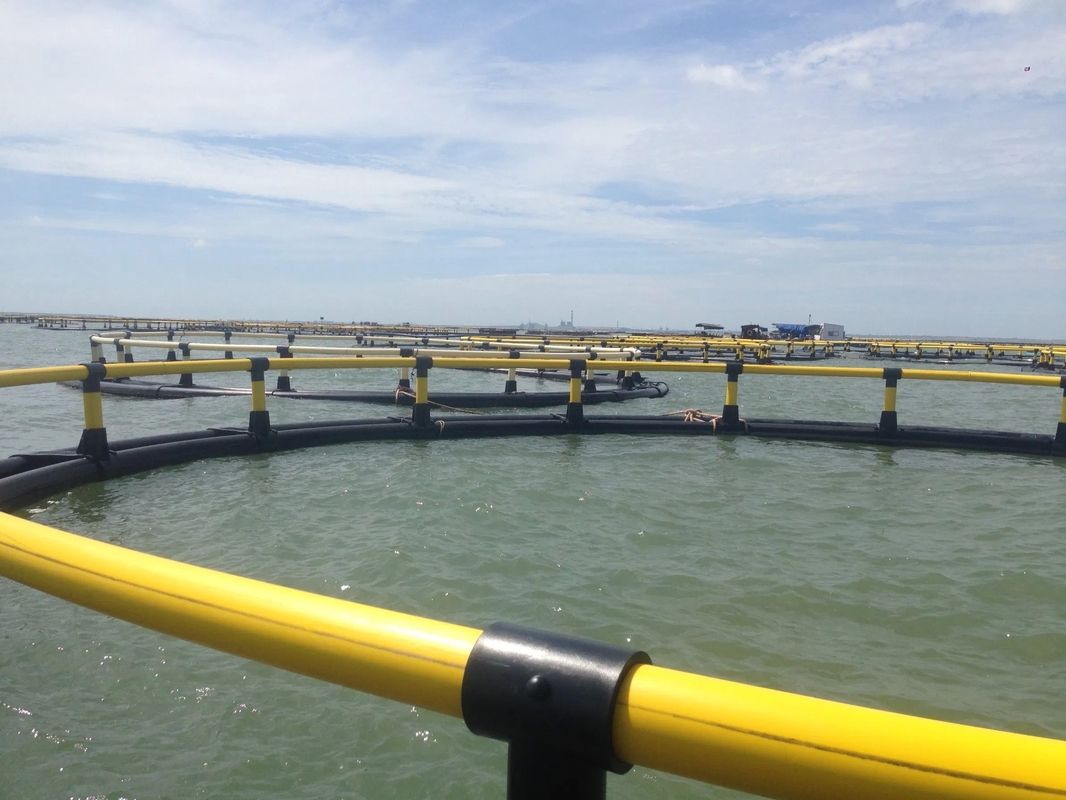

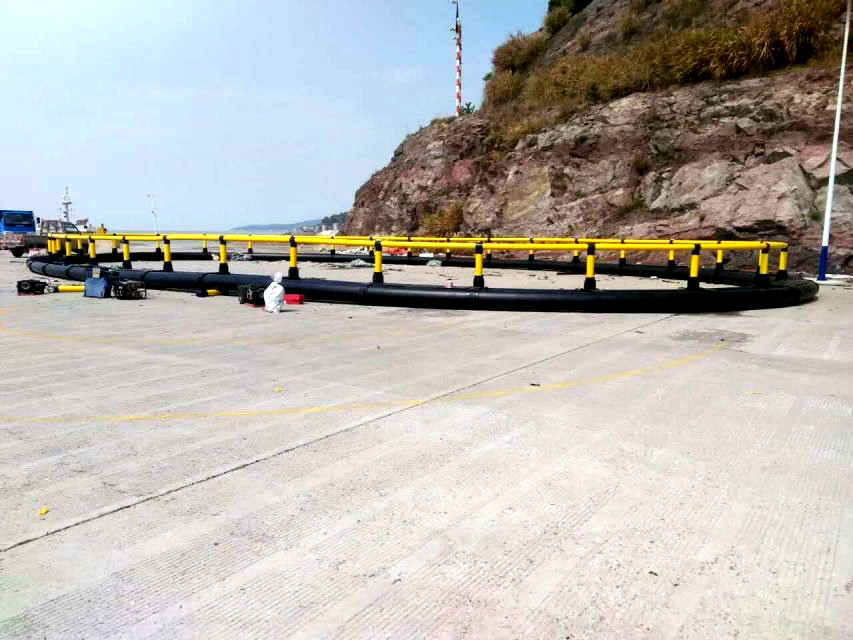

Product Showcase
