Highlight
HDPE circular fish cage system
,offshore fish farming cage 10m-50m
,HDPE fish cage with warranty
-
Floating Pipe Diameter200mm/250mm/315mm/350mm/400mm
-
MaterialHDPE Pipe
-
ShapeRound
-
Diameter Range10m - 50m
-
Water Depth-6m To 50m
-
Wind Resistance12 Grade Typhoon
-
Wave Resistance7m
-
Current Resistance1.2m/s
-
Frame LifespanOver 15 Years
-
Circumference30M, 40M, 50M, 60M, 70M, 80M, 90M, 100M, 120M, 150M, 200M
-
Handrail Pipe Diameter90mm/110mm/125mm
-
Stand Pipe Diameter110mm/125mm
-
Square Cage Dimensions3m*3m To 30m*30m
-
Production Capacity6000 Sets/year
-
Mooring SystemGrid System
-
Minimum Order Quantity5
-
Price1000

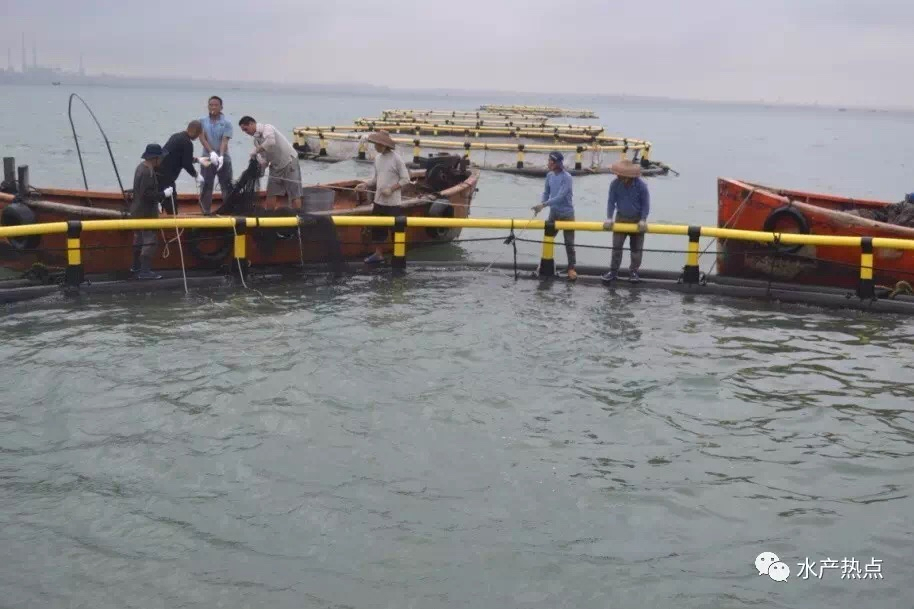

HDPE Offshore Fish Farming Cage System 10m-50m Diameter
Offshore Fish Farming Cage System
The Offshore Fish Farming Cage System features superior durability and performance in marine environments. Constructed from marine-grade HDPE pipe, our cages offer exceptional resistance to wind, currents, and waves while providing optimal living conditions for aquaculture.
Key Features
- Wide application range suitable for water depths from 6m to 50m
- Exceptional wind resistance (up to grade 12 typhoon conditions)
- Superior wave resistance (up to 7m) and current resistance (1.2m/s)
- Spacious aquaculture capacity with optimal growing space
- Extended service life exceeding 15 years for cage frames
- Easy net replacement system for maintenance
- Marine-grade HDPE construction with high strength, toughness, and anti-aging properties
Structure Overview
Technical Specifications

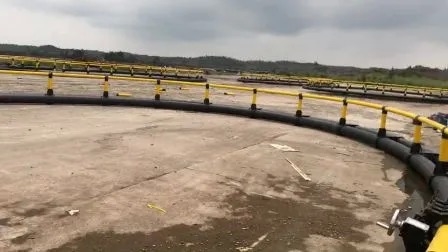

HDPE Round Floating Cage Frame
| Circumference (M) | Diameter of Floating Pipe (MM) | Diameter of Handrail Pipe (MM) | Diameter of Stand Pipe (MM) |
|---|---|---|---|
| 30 | 200mm | 90mm | 110mm |
| 40 | 200mm/250mm | 90mm/110mm | 110mm/125mm |
| 50 | 250mm | 110mm | 125mm |
| 60 | 250mm/315mm | 110mm | 125mm |
| 70 | 315mm | 110mm/125mm | 125mm |
| 80 | 315mm | 110mm/125mm | -- |
| 90 | 350mm | 125mm | -- |
| 100 | 350mm/400mm | 125mm | -- |
| 120 | 350mm/400mm | 125mm | -- |
| 150 | 350mm/400mm | 125mm | -- |
| 200 | 400mm | 125mm | -- |
HDPE Square Floating Cage Frame
| L*W (M) | Diameter of Floating Pipe (MM) | Diameter of Handrail Pipe (MM) | Diameter of Stand Pipe (MM) |
|---|---|---|---|
| 3m * 3m | 200mm | 90mm | 110mm |
| 4m * 4m | 200mm | 90mm | 110mm |
| 5m * 5m | 200mm | 90mm | 110mm |
| 6m * 6m | 200mm/250mm | 90mm/110mm | 110mm/125mm |
| 7m * 7m | 250mm/315mm | 110mm | 125mm |
| 8m * 8m | 250mm/315mm | 110mm | 125mm |
| 9m * 9m | 250mm/315mm | 110mm | 125mm |
| 10m * 10m | 315mm | 110mm | 125mm |
| 12m * 12m | 315mm/350mm | 110mm/125mm | 125mm/-- |
| 15m * 15m | 315mm/350mm | 110mm/125mm | 125mm/-- |
| 20m * 20m | 350mm/400mm | 125mm | -- |
| 30m * 30m | 350mm/400mm | 125mm | -- |
Mooring System
Our advanced "Grid" mooring system is designed for deep sea and freshwater applications. The interconnected rope and shackle network creates a unified structure where cages move collectively, preventing collisions and damage even in challenging sea conditions.
