Highlight
HDPE circular fish cage for aquaculture
,13m diameter fish cage
,50m aquaculture fish cage
-
Floating Pipe Diameter200mm/250mm/315mm/350mm/400mm
-
MaterialHDPE Pipe
-
ShapeCircular
-
Diameter Range13m - 50m
-
Water Depth-6m To 50m
-
Wind Resistance12 Grade
-
Wave Resistance7m
-
Current Resistance1.2m/s
-
Lifespan15 Years
-
Circumference30m - 200m
-
Handrail Pipe Diameter90mm/110mm/125mm
-
Stand Pipe Diameter110mm/125mm
-
Square Cage Dimensions3m*3m - 30m*30m
-
Production Capacity6000sets/Year
-
Mooring SystemGrid System
-
Minimum Order Quantity5
-
Price1000

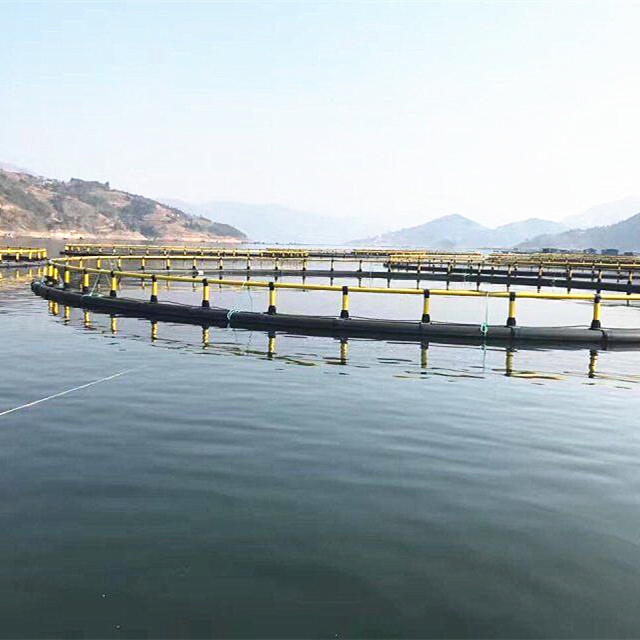

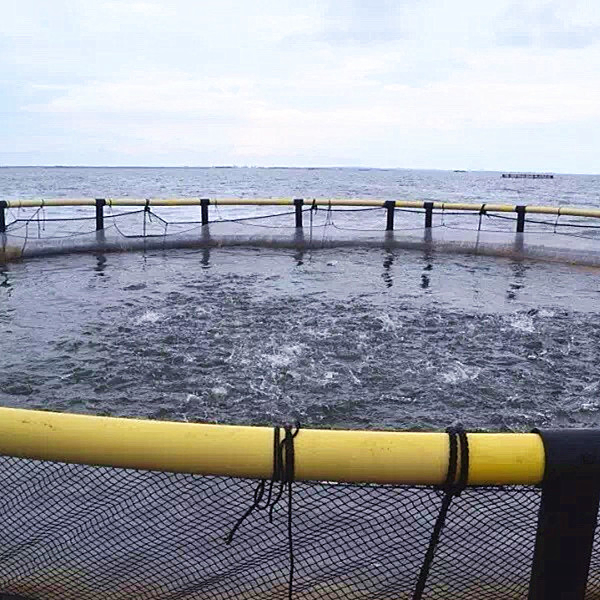

HDPE Circular Fish Cage 13m-50m Diameter for Aquaculture
HDPE Aquaculture Floating Fish Farming Cage for tilapia culture in Lake Victoria
Nanfengwang cage has a strong ability of anti-wind, anti-current and anti-wave. It's made of new material HDPE pipe, making the cage have a long life. The cage capacity is large and makes a high survival rate.
- Wide range of applications, it can be set in the depth of water from -6m to 50m.
- Strong ability of wind resistance, can defend against the typhoon, the maximum is 12 grade. Strong ability of wave resistance to 7m, strong ability of current resistance to 1.2m/s.
- Aquaculture capacity, the living space and growing space are large.
- The cage has a long life, the cage frame can be used over 15 years.
- The net can be replaced easily.
- Material is a marine special HDPE pipe, which is high strength, high toughness, anti-oxidant and anti-aging.
| Circumference (M) | Diameter of Floating Pipe (MM) | Diameter of Handrial Pipe (MM) | Diameter of Stand Pipe (MM) |
|---|---|---|---|
| 30 | 200mm | 90mm | 110mm |
| 40 | 200mm/250mm | 90mm/110mm | 110mm/125mm |
| 50 | 250mm | 110mm | 125mm |
| 60 | 250mm/315mm | 110mm | 125mm |
| 70 | 315mm | 110mm/125mm | 125mm |
| 80 | 315mm | 110mm/125mm | -- |
| 90 | 350mm | 125mm | -- |
| 100 | 350mm/400mm | 125mm | -- |
| 120 | 350mm/400mm | 125mm | -- |
| 150 | 350mm/400mm | 125mm | -- |
| 200 | 400mm | 125mm | -- |
| L*W (M) | Diameter of Floating Pipe (MM) | Diameter of Handrial Pipe (MM) | Diameter of Stand Pipe (MM) |
|---|---|---|---|
| 3m * 3m | 200mm | 90mm | 110mm |
| 4m * 4m | 200mm | 90mm | 110mm |
| 5m * 5m | 200mm | 90mm | 110mm |
| 6m * 6m | 200mm/250mm | 90mm/110mm | 110mm/125mm |
| 7m * 7m | 250mm/315mm | 110mm | 125mm |
| 8m * 8m | 250mm/315mm | 110mm | 125mm |
| 9m * 9m | 250mm/315mm | 110mm | 125mm |
| 10m * 10m | 315mm | 110mm | 125mm |
| 12m * 12m | 315mm/350mm | 110mm/125mm | 125mm/-- |
| 15m * 15m | 315mm/350mm | 110mm/125mm | 125mm/-- |
| 20m * 20m | 350mm/400mm | 125mm | -- |
| 30m * 30m | 350mm/400mm | 125mm | -- |
Our mooring system is "Grid" system in the deep sea or fresh water. The "Grid" system is made by the ropes and shackles, the cages are in the grid and fixed by ropes. Such the cages are united as one group, one cage moves, other cages all move, they are interrelated and mutual restraint to avoid destruction accidents caused by collisions between different cages even in the bad sea condition.
Our products are sold all over the world, you can rest assured.
