Highlight
HDPE circular fish cage for aquaculture
,13m-50m diameter fish cage
,circular fish cage HDPE material
-
Floating Pipe Diameter200mm/250mm/315mm/350mm/400mm
-
MaterialHDPE Pipe
-
ShapeCircular
-
Diameter Range13m - 50m
-
Water Depth Range-6m To 50m
-
Wind Resistance12 Grade Typhoon
-
Wave Resistance7m
-
Current Resistance1.2m/s
-
Frame LifespanOver 15 Years
-
Circumference Options30m, 40m, 50m, 60m, 70m, 80m, 90m, 100m, 120m, 150m, 200m
-
Handrail Pipe Diameter90mm/110mm/125mm
-
Stand Pipe Diameter110mm/125mm
-
Square Cage Dimensions3m*3m To 30m*30m
-
Production Capacity6000 Sets/year
-
Mooring SystemGrid System
-
Minimum Order Quantity5
-
Price1000

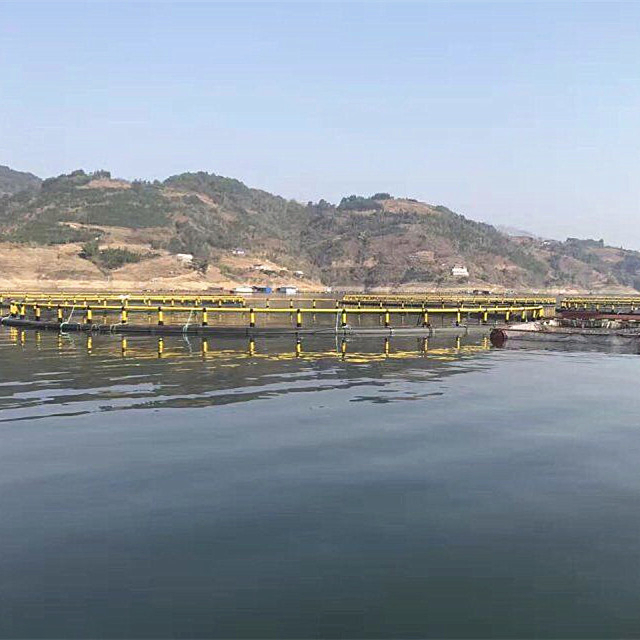

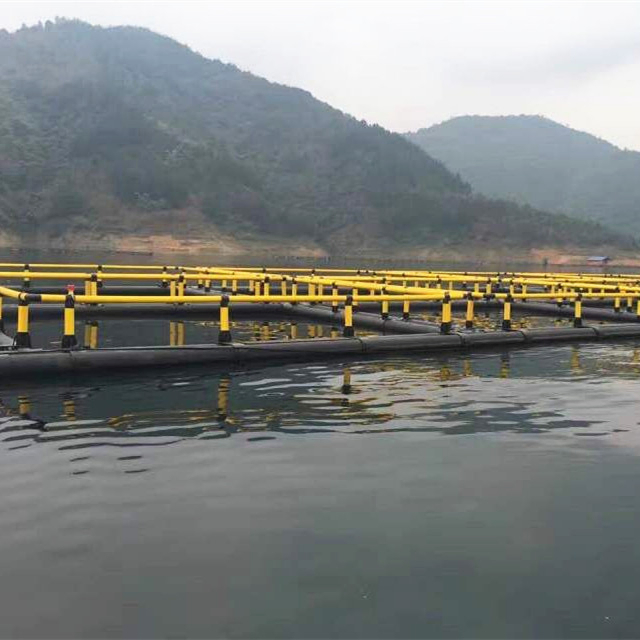

HDPE Circular Fish Cage 13m-50m Diameter for Aquaculture
HDPE Aquaculture Floating Fish Pen for Tilapia Culture in Lake Victoria
Product Description
HDPE Aquaculture Floating Fish Pen for tilapia culture in Lake Victoria
Nanfengwang cage features exceptional wind, current, and wave resistance. Constructed with durable HDPE pipe material for extended lifespan, these cages offer large capacity and high survival rates for aquaculture operations.
Key Features
- Versatile applications in water depths from 6m to 50m
- Superior wind resistance (up to grade 12 typhoon), wave resistance (7m waves), and current resistance (1.2m/s)
- Spacious aquaculture capacity with ample living and growing space
- Long-lasting cage frame with over 15 years of service life
- Easy net replacement system
- Constructed with marine-grade HDPE pipe featuring high strength, toughness, and anti-aging properties
Technical Specifications
HDPE Round Floating Cage Frame
| Circumference (M) | Diameter of Floating Pipe (MM) | Diameter of Handrail Pipe (MM) | Diameter of Stand Pipe (MM) |
|---|---|---|---|
| 30 | 200mm | 90mm | 110mm |
| 40 | 200mm/250mm | 90mm/110mm | 110mm/125mm |
| 50 | 250mm | 110mm | 125mm |
| 60 | 250mm/315mm | 110mm | 125mm |
| 70 | 315mm | 110mm/125mm | 125mm |
| 80 | 315mm | 110mm/125mm | -- |
| 90 | 350mm | 125mm | -- |
| 100 | 350mm/400mm | 125mm | -- |
| 120 | 350mm/400mm | 125mm | -- |
| 150 | 350mm/400mm | 125mm | -- |
| 200 | 400mm | 125mm | -- |
HDPE Square Floating Cage Frame
| L*W (M) | Diameter of Floating Pipe (MM) | Diameter of Handrail Pipe (MM) | Diameter of Stand Pipe (MM) |
|---|---|---|---|
| 3m * 3m | 200mm | 90mm | 110mm |
| 4m * 4m | 200mm | 90mm | 110mm |
| 5m * 5m | 200mm | 90mm | 110mm |
| 6m * 6m | 200mm/250mm | 90mm/110mm | 110mm/125mm |
| 7m * 7m | 250mm/315mm | 110mm | 125mm |
| 8m * 8m | 250mm/315mm | 110mm | 125mm |
| 9m * 9m | 250mm/315mm | 110mm | 125mm |
| 10m * 10m | 315mm | 110mm | 125mm |
| 12m * 12m | 315mm/350mm | 110mm/125mm | 125mm/-- |
| 15m * 15m | 315mm/350mm | 110mm/125mm | 125mm/-- |
| 20m * 20m | 350mm/400mm | 125mm | -- |
| 30m * 30m | 350mm/400mm | 125mm | -- |
Mooring System
Our advanced "Grid" mooring system is designed for deep sea or freshwater applications. The system utilizes ropes and shackles to create a unified grid where cages are interconnected. This innovative design ensures that all cages move together as one unit, preventing collisions and damage even in challenging sea conditions.
Product Visuals
Cage Components
Product Demonstration
Manufacturing Facility
