Highlight
HDPE circular fish cage for tilapia
,13m diameter fish farming cage
,50m HDPE fish cage
-
Floating Pipe Diameter200mm/250mm/315mm/350mm/400mm
-
MaterialHDPE Pipe
-
ShapeCircular
-
Diameter Range13m - 50m
-
Water Depth Range-6m To 50m
-
Wind Resistance12 Grade Typhoon
-
Wave Resistance7m
-
Current Resistance1.2m/s
-
Frame Lifespan15 Years
-
Circumference Options30m, 40m, 50m, 60m, 70m, 80m, 90m, 100m, 120m, 150m, 200m
-
Handrail Pipe Diameter90mm/110mm/125mm
-
Stand Pipe Diameter110mm/125mm
-
Square Cage Dimensions3m*3m To 30m*30m
-
Production Capacity6000 Sets/year
-
Mooring SystemGrid System
-
Minimum Order Quantity5
-
Price1000

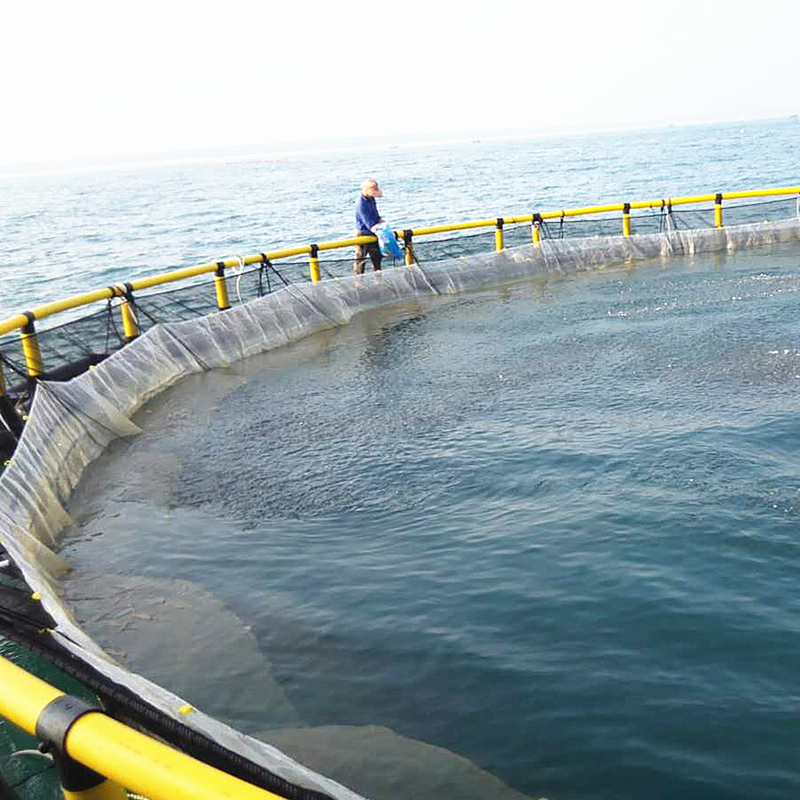

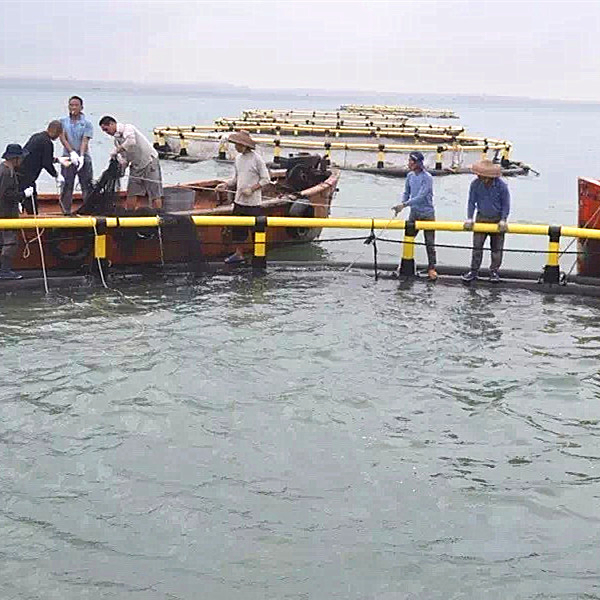

HDPE Circular Fish Cage 13m-50m Diameter for Tilapia Farming
PE Fish Pen for Tilapia Culture in Lake Victoria
HDPE Fish Pen for Tilapia Culture
Our Nanfengwang cage features exceptional durability and performance for tilapia culture in Lake Victoria. Constructed from marine-grade HDPE pipe, this fish pen offers superior resistance to environmental factors while providing optimal growing conditions.
- Wide application range: Suitable for water depths from 6m to 50m
- Exceptional durability: Frame lifespan exceeds 15 years
- Superior environmental resistance: Withstands 12-grade typhoons, 7m waves, and 1.2m/s currents
- Optimal growing space: Large capacity design enhances survival rates
- Easy maintenance: Simple net replacement system
- Premium materials: Marine-spec HDPE pipe with high strength, toughness, and anti-aging properties
Technical Specifications
HDPE Round Floating Cage Frame
| Circumference (M) | Floating Pipe Diameter (MM) | Handrail Pipe Diameter (MM) | Stand Pipe Diameter (MM) |
|---|---|---|---|
| 30 | 200 | 90 | 110 |
| 40 | 200/250 | 90/110 | 110/125 |
| 50 | 250 | 110 | 125 |
| 60 | 250/315 | 110 | 125 |
| 70 | 315 | 110/125 | 125 |
| 80 | 315 | 110/125 | -- |
| 90 | 350 | 125 | -- |
| 100 | 350/400 | 125 | -- |
| 120 | 350/400 | 125 | -- |
| 150 | 350/400 | 125 | -- |
| 200 | 400 | 125 | -- |
HDPE Square Floating Cage Frame
| Dimensions (L×W in M) | Floating Pipe Diameter (MM) | Handrail Pipe Diameter (MM) | Stand Pipe Diameter (MM) |
|---|---|---|---|
| 3×3 | 200 | 90 | 110 |
| 4×4 | 200 | 90 | 110 |
| 5×5 | 200 | 90 | 110 |
| 6×6 | 200/250 | 90/110 | 110/125 |
| 7×7 | 250/315 | 110 | 125 |
| 8×8 | 250/315 | 110 | 125 |
| 9×9 | 250/315 | 110 | 125 |
| 10×10 | 315 | 110 | 125 |
| 12×12 | 315/350 | 110/125 | 125/-- |
| 15×15 | 315/350 | 110/125 | 125/-- |
| 20×20 | 350/400 | 125 | -- |
| 30×30 | 350/400 | 125 | -- |
Mooring System
Our advanced "Grid" mooring system is specifically designed for deep sea and freshwater applications. This interconnected system uses ropes and shackles to unite multiple cages into a single, stable group. When one cage moves, all connected cages move in unison, preventing collisions and damage even in challenging sea conditions.
Cage Components
Product Showcase
Our Manufacturing Facility
