Square Fish Cage with 3m*3m - 10m*10m Size and Marine Special HDPE Pipe for Lake Farming
-
Highlight
3m*3m - 10m*10m Fish Cage
,Black and Yellow Aquaculture Cage
,Marine Special Floating Fish Cage
-
Floating Pipe Diameter200mm-400mm
-
Handrail Pipe Diameter90mm-125mm
-
Stand Pipe Diameter110mm-125mm
-
Square Cage Size3m*3m-10m*10m
-
Round Cage Circumference30m-200m
-
Material TypeHDPE Pipe
-
Frame ShapeRound, Square
-
Water Depth Range-6m To 50m
-
Wind Resistance12-grade Typhoon
-
Wave Resistance7m Waves
-
Current Resistance1.2m/s
-
Frame Lifespan15+ Years
-
Pipe Material PropertiesHigh Strength, High Toughness, Anti-oxidant, Anti-aging
-
Mooring System TypeGrid System
-
Production Capacity6000 Sets/year
-
CertificationCE, ISO9001:2008
-
Minimum Order Quantity1
-
Price1000
Square Fish Cage with 3m*3m - 10m*10m Size and Marine Special HDPE Pipe for Lake Farming
Square Fish Cage for Tilapia or Grouper in Lake
Nanfengwang HDPE fish cages offer superior durability and performance for lake fish farming operations. Engineered with marine-grade HDPE piping, these cages provide exceptional resistance to environmental factors while maximizing fish survival rates.
Key Features
- Versatile Deployment: Suitable for water depths ranging from 6m to 50m
- Exceptional Durability: Withstands 12-grade typhoons, 7m waves, and currents up to 1.2m/s
- Optimized Growth Space: Large capacity design promotes healthy fish development
- Long Service Life: Frame structure lasts over 15 years
- Easy Maintenance: Simple net replacement system
- Premium Materials: Marine-grade HDPE piping with high strength, toughness, and UV resistance
Structure Overview
Technical Specifications - Round Floating Cage Frames
| Circumference (M) | Floating Pipe Diameter (MM) | Handrail Pipe Diameter (MM) | Stand Pipe Diameter (MM) |
|---|---|---|---|
| 30 | 200mm | 90mm | 110mm |
| 40 | 200mm/250mm | 90mm/110mm | 110mm/125mm |
| 50 | 250mm | 110mm | 125mm |
| 60 | 250mm/315mm | 110mm | 125mm |
| 70 | 315mm | 110mm/125mm | 125mm |
| 80 | 315mm | 110mm/125mm | -- |
| 90 | 350mm | 125mm | -- |
| 100 | 350mm/400mm | 125mm | -- |
| 120 | 350mm/400mm | 125mm | -- |
| 150 | 350mm/400mm | 125mm | -- |
| 200 | 400mm | 125mm | -- |
Technical Specifications - Square Floating Cage Frames
| Dimensions L×W (M) | Floating Pipe Diameter (MM) | Handrail Pipe Diameter (MM) | Stand Pipe Diameter (MM) |
|---|---|---|---|
| 3×3 | 200mm | 90mm | 110mm |
| 4×4 | 200mm | 90mm | 110mm |
| 5×5 | 200mm | 90mm | 110mm |
| 6×6 | 200mm/250mm | 90mm/110mm | 110mm/125mm |
| 7×7 | 250mm/315mm | 110mm | 125mm |
| 8×8 | 250mm/315mm | 110mm | 125mm |
| 9×9 | 250mm/315mm | 110mm | 125mm |
| 10×10 | 315mm | 110mm | 125mm |
| 12×12 | 315mm/350mm | 110mm/125mm | 125mm/-- |
| 15×15 | 315mm/350mm | 110mm/125mm | 125mm/-- |
| 20×20 | 350mm/400mm | 125mm | -- |
| 30×30 | 350mm/400mm | 125mm | -- |
Advanced Mooring System

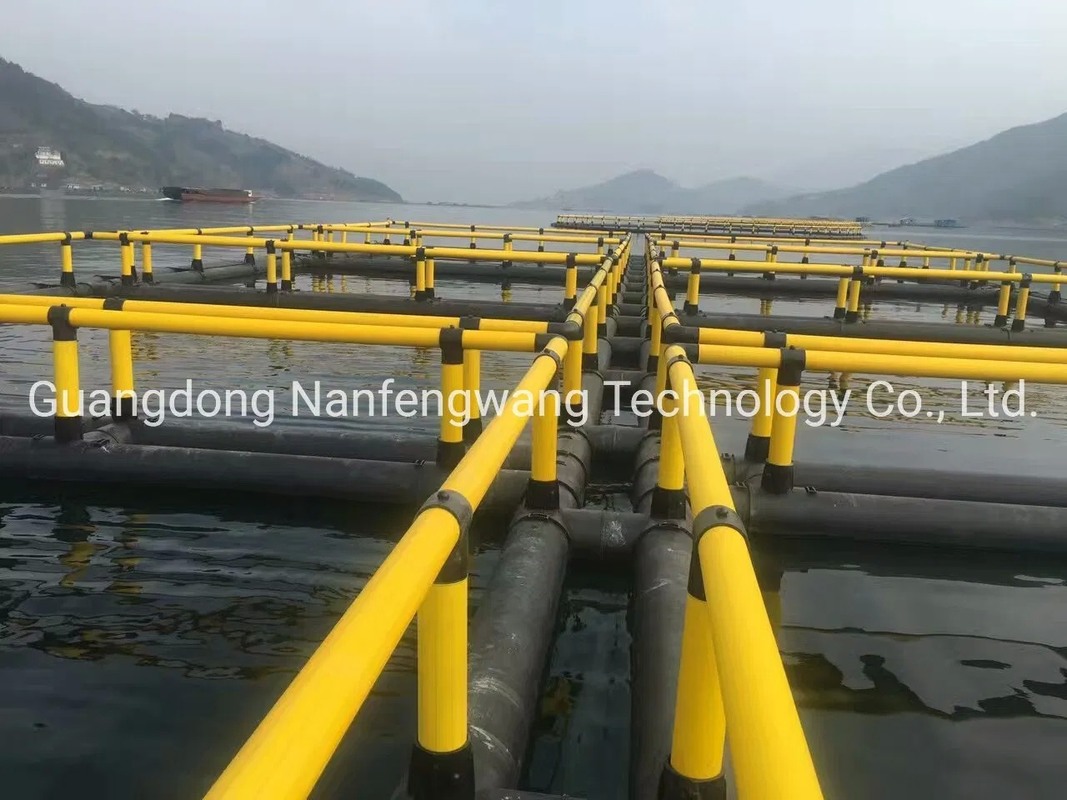

Our innovative "Grid" mooring system creates a unified network of cages in deep sea or freshwater environments. The interconnected design ensures synchronized movement of all cages, preventing collisions and maintaining stability even in challenging conditions.

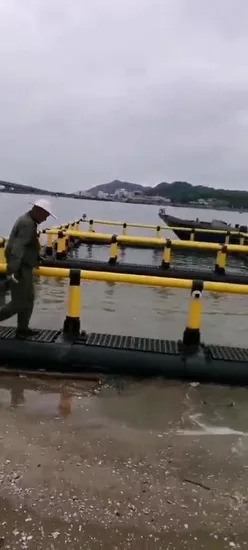

Product Demonstration
