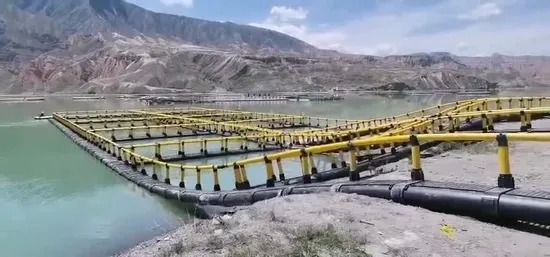

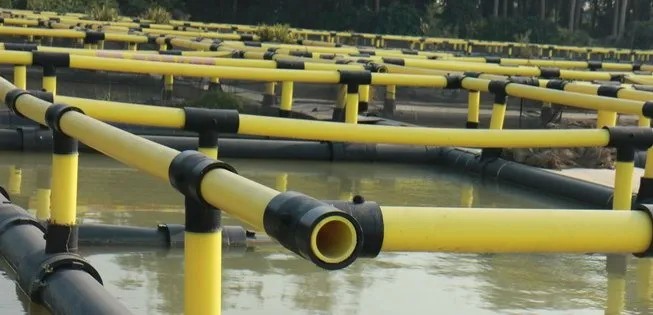

Square Shape Floating Net Cage 3m*3m-12m*12m Aquaculture Fish Cage in Black and Yellow for Tilapia Farming
-
Highlight
Square Shape Floating Net Cage
,3m*3m-12m*12m Aquaculture Fish Cage
,Black and Yellow Fish Farming Cage
-
Floating Pipe Diameter200mm-400mm
-
Handrail Pipe Diameter90mm-125mm
-
Stand Pipe Diameter110mm-125mm
-
Cage ShapeSquare
-
Material TypeHDPE Pipe
-
Water Depth Range-6m To 50m
-
Wind Resistance12 Grade Typhoon
-
Wave Resistance7m Waves
-
Current Resistance1.2m/s
-
Frame Lifespan15+ Years
-
Square Cage Sizes3m*3m-30m*30m
-
Circular Cage Circumference30m-200m
-
Circular Cage Diameter200mm-400mm
-
Mooring System TypeGrid System
-
Production Capacity6000 Sets/year
-
Minimum Order Quantity5
-
Price1000
Square Shape Floating Net Cage 3m*3m-12m*12m Aquaculture Fish Cage in Black and Yellow for Tilapia Farming
Aquaculture Floating Net Cages for Tilapia (2m×2m to 10m×10m)
Product Features
Nanfengwang floating cages offer superior durability and performance for aquaculture operations. Constructed from marine-grade HDPE piping, these cages provide exceptional resistance to environmental stresses while maximizing fish survival rates.
- Versatile Deployment: Suitable for water depths ranging from 6m to 50m
- Extreme Weather Resistance: Withstands typhoons (up to category 12), waves up to 7m, and currents up to 1.2m/s
- Optimal Growth Space: Large capacity design promotes healthy fish development
- Long Service Life: Frame durability exceeds 15 years
- Easy Maintenance: Simple net replacement system
- Premium Materials: Marine-spec HDPE piping offers high strength, toughness, and UV/oxidation resistance
Technical Specifications
HDPE Round Floating Cage Frame Specifications
| Circumference (M) | Floating Pipe Diameter (MM) | Handrail Pipe Diameter (MM) | Stand Pipe Diameter (MM) |
|---|---|---|---|
| 30 | 200 | 90 | 110 |
| 40 | 200/250 | 90/110 | 110/125 |
| 50 | 250 | 110 | 125 |
| 60 | 250/315 | 110 | 125 |
| 70 | 315 | 110/125 | 125 |
| 80 | 315 | 110/125 | -- |
| 90 | 350 | 125 | -- |
| 100 | 350/400 | 125 | -- |
| 120 | 350/400 | 125 | -- |
| 150 | 350/400 | 125 | -- |
| 200 | 400 | 125 | -- |
HDPE Square Floating Cage Frame Specifications
| Dimensions L×W (M) | Floating Pipe Diameter (MM) | Handrail Pipe Diameter (MM) | Stand Pipe Diameter (MM) |
|---|---|---|---|
| 3×3 | 200 | 90 | 110 |
| 4×4 | 200 | 90 | 110 |
| 5×5 | 200 | 90 | 110 |
| 6×6 | 200/250 | 90/110 | 110/125 |
| 7×7 | 250/315 | 110 | 125 |
| 8×8 | 250/315 | 110 | 125 |
| 9×9 | 250/315 | 110 | 125 |
| 10×10 | 315 | 110 | 125 |
| 12×12 | 315/350 | 110/125 | 125/-- |
| 15×15 | 315/350 | 110/125 | 125/-- |
| 20×20 | 350/400 | 125 | -- |
| 30×30 | 350/400 | 125 | -- |
Mooring System
Our advanced "Grid" mooring system securely connects multiple cages in deep sea or freshwater environments. Using specialized ropes and shackles, this system creates an interconnected group where movement of one cage affects all others. This innovative design prevents destructive collisions between cages, even in challenging sea conditions.
