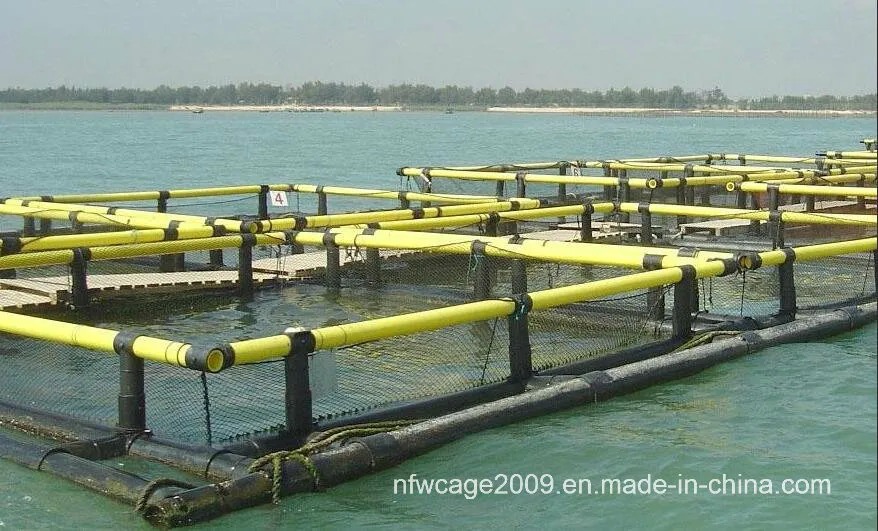

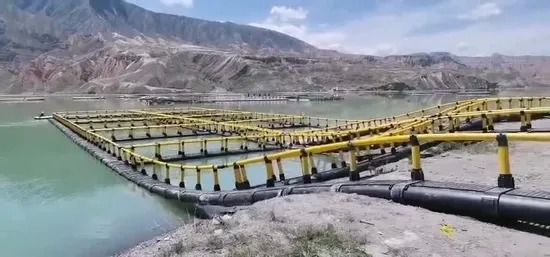

HDPE Floating Fish Cage with Long Life and Easy Net Replacement Featuring Grid Mooring System for Aquaculture
-
Highlight
Long Life HDPE Fish Cage
,Easy Net Replacement Aquaculture Cage
,Grid Mooring System Fish Cage
-
Floating Pipe Diameter200mm-400mm
-
Handrail Pipe Diameter90mm-125mm
-
Stand Pipe Diameter110mm-125mm
-
Round Cage Diameter10m-50m
-
Square Cage Size3m×3m-30m×30m
-
Material TypeHDPE Pipe
-
Pipe ShapeRound
-
Water Depth Range-6m To 50m
-
Wind Resistance12-grade Typhoon
-
Wave Resistance7m Waves
-
Current Resistance1.2m/s
-
Frame Lifespan15+ Years
-
Pipe PropertiesHigh Strength, High Toughness, Anti-oxidant, Anti-aging
-
Mooring SystemGrid System
-
Production Capacity6000 Sets/year
-
Minimum Order Quantity1
HDPE Floating Fish Cage with Long Life and Easy Net Replacement Featuring Grid Mooring System for Aquaculture
HDPE Square Aquaculture Fish Cage Floating System
Product Features
- Exceptional durability with marine-grade HDPE piping material
- Superior resistance to wind (up to 12-grade typhoons), waves (up to 7m), and currents (up to 1.2m/s)
- Versatile installation depth range from -6m to 50m
- Extended service life exceeding 15 years for cage frames
- High-strength, high-toughness construction with anti-oxidant and anti-aging properties
- Spacious aquaculture capacity promoting higher survival rates
- Easy net replacement system
Structure Overview
Technical Specifications
HDPE Round Floating Cage Frame Specifications
| Circumference (M) | Floating Pipe Diameter (MM) | Handrail Pipe Diameter (MM) | Stand Pipe Diameter (MM) |
|---|---|---|---|
| 30 | 200 | 90 | 110 |
| 40 | 200/250 | 90/110 | 110/125 |
| 50 | 250 | 110 | 125 |
| 60 | 250/315 | 110 | 125 |
| 70 | 315 | 110/125 | 125 |
| 80 | 315 | 110/125 | -- |
| 90 | 350 | 125 | -- |
| 100 | 350/400 | 125 | -- |
| 120 | 350/400 | 125 | -- |
| 150 | 350/400 | 125 | -- |
| 200 | 400 | 125 | -- |
HDPE Square Floating Cage Frame Specifications
| Dimensions L×W (M) | Floating Pipe Diameter (MM) | Handrail Pipe Diameter (MM) | Stand Pipe Diameter (MM) |
|---|---|---|---|
| 3×3 | 200 | 90 | 110 |
| 4×4 | 200 | 90 | 110 |
| 5×5 | 200 | 90 | 110 |
| 6×6 | 200/250 | 90/110 | 110/125 |
| 7×7 | 250/315 | 110 | 125 |
| 8×8 | 250/315 | 110 | 125 |
| 9×9 | 250/315 | 110 | 125 |
| 10×10 | 315 | 110 | 125 |
| 12×12 | 315/350 | 110/125 | 125/-- |
| 15×15 | 315/350 | 110/125 | 125/-- |
| 20×20 | 350/400 | 125 | -- |
| 30×30 | 350/400 | 125 | -- |
Advanced Mooring System
Our proprietary "Grid" mooring system utilizes interconnected ropes and shackles to create a unified cage network in deep sea or freshwater environments. This innovative design ensures all cages move in synchronization, preventing destructive collisions even in severe sea conditions. The interconnected system provides mutual restraint and stability across the entire aquaculture installation.
