Customizable Circular Fish Cage with Grid Mooring System and Black and Yellow HDPE Pipe for Aquaculture
-
Highlight
Grid Mooring System Fish Cage
,Black and Yellow HDPE Fish Cage
,Customizable Floating Fish Farming Cage
-
Floating Pipe Diameter200mm/250mm/315mm/350mm/400mm
-
MaterialHDPE Pipe
-
ShapeRound
-
Diameter Range10m - 50m
-
Water Depth-6m To 50m
-
Wind Resistance12 Grade Typhoon
-
Wave Resistance7m
-
Current Resistance1.2m/s
-
Frame Lifespan15 Years
-
Circumference Options30m, 40m, 50m, 60m, 70m, 80m, 90m, 100m, 120m, 150m, 200m
-
Handrail Pipe Diameter90mm/110mm/125mm
-
Stand Pipe Diameter110mm/125mm
-
Square Cage Dimensions3m*3m To 30m*30m
-
Production Capacity6000 Sets/year
-
Mooring SystemGrid System
-
Minimum Order Quantity1
Customizable Circular Fish Cage with Grid Mooring System and Black and Yellow HDPE Pipe for Aquaculture
HDPE Fish Farming Cage System
Comprehensive Aquaculture Solution

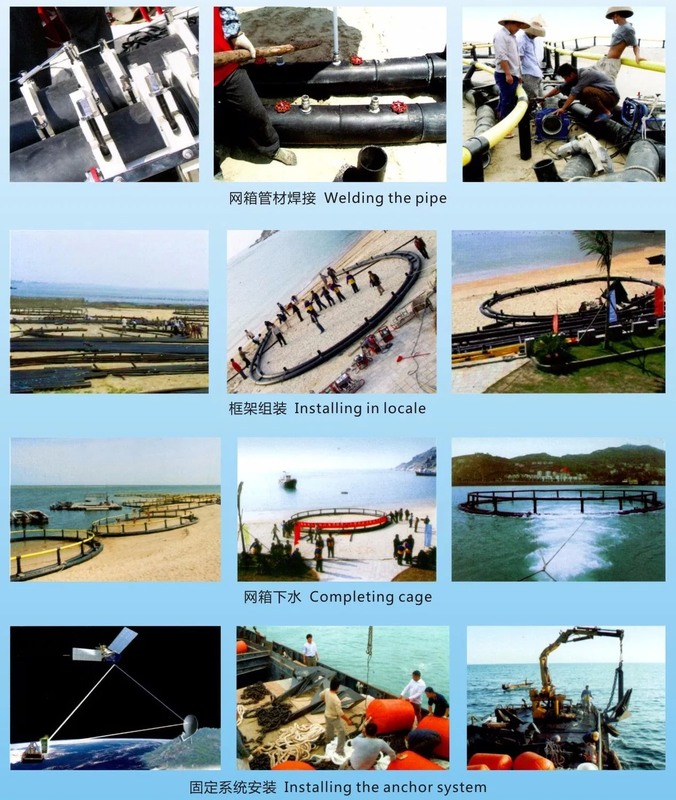

Our Nanfengwang HDPE fish farming cages provide a complete solution including design, production, and installation services. Engineered for durability and performance in marine environments.
Key Features
- Superior environmental resistance: withstands 12-grade typhoons, 7m waves, and 1.2m/s currents
- Marine-grade HDPE construction for exceptional strength, toughness, and UV/oxidation resistance
- Extended service life: frame durability exceeds 15 years
- Versatile deployment: suitable for water depths from 6m to 50m
- Optimized aquaculture capacity with spacious growing environment
- Modular net replacement system for easy maintenance
System Design
Technical Specifications
Round Floating Cage Frame
| Circumference (M) | Floating Pipe Diameter (MM) | Handrail Pipe Diameter (MM) | Stand Pipe Diameter (MM) |
|---|---|---|---|
| 30 | 200 | 90 | 110 |
| 40 | 200/250 | 90/110 | 110/125 |
| 50 | 250 | 110 | 125 |
| 60 | 250/315 | 110 | 125 |
| 70 | 315 | 110/125 | 125 |
| 80 | 315 | 110/125 | -- |
| 90 | 350 | 125 | -- |
| 100 | 350/400 | 125 | -- |
| 120 | 350/400 | 125 | -- |
| 150 | 350/400 | 125 | -- |
| 200 | 400 | 125 | -- |
Square Floating Cage Frame
| Dimensions L×W (M) | Floating Pipe Diameter (MM) | Handrail Pipe Diameter (MM) | Stand Pipe Diameter (MM) |
|---|---|---|---|
| 3×3 | 200 | 90 | 110 |
| 4×4 | 200 | 90 | 110 |
| 5×5 | 200 | 90 | 110 |
| 6×6 | 200/250 | 90/110 | 110/125 |
| 7×7 | 250/315 | 110 | 125 |
| 8×8 | 250/315 | 110 | 125 |
| 9×9 | 250/315 | 110 | 125 |
| 10×10 | 315 | 110 | 125 |
| 12×12 | 315/350 | 110/125 | 125/-- |
| 15×15 | 315/350 | 110/125 | 125/-- |
| 20×20 | 350/400 | 125 | -- |
| 30×30 | 350/400 | 125 | -- |
Advanced Mooring System
Our proprietary "Grid" mooring system creates an interconnected cage network in deep sea or freshwater environments. The system utilizes marine-grade ropes and shackles to unite cages into a cohesive group that moves collectively, preventing destructive collisions even in severe conditions.

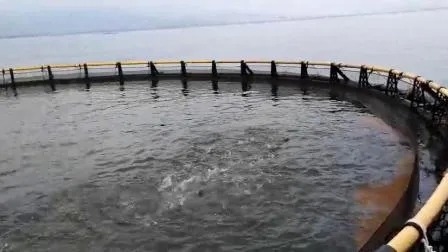

Product Showcase
