PE100 Material Anti-wind Square HDPE Fish Cage with 200mm Main Float Pipe for Aquaculture
-
Highlight
PE100 Material HDPE Fish Cage
,Anti-wind Square Circular Fish Cage
,200mm Main Float Pipe Aquaculture Fish Cage
-
MaterialPE100
-
Minimum Order Quantity5
-
Price4000
-
Packaging Detailsknock-down packing
-
Delivery Time30 working days
-
Payment TermsT/T
-
Supply Ability500 SETS per Month
PE100 Material Anti-wind Square HDPE Fish Cage with 200mm Main Float Pipe for Aquaculture

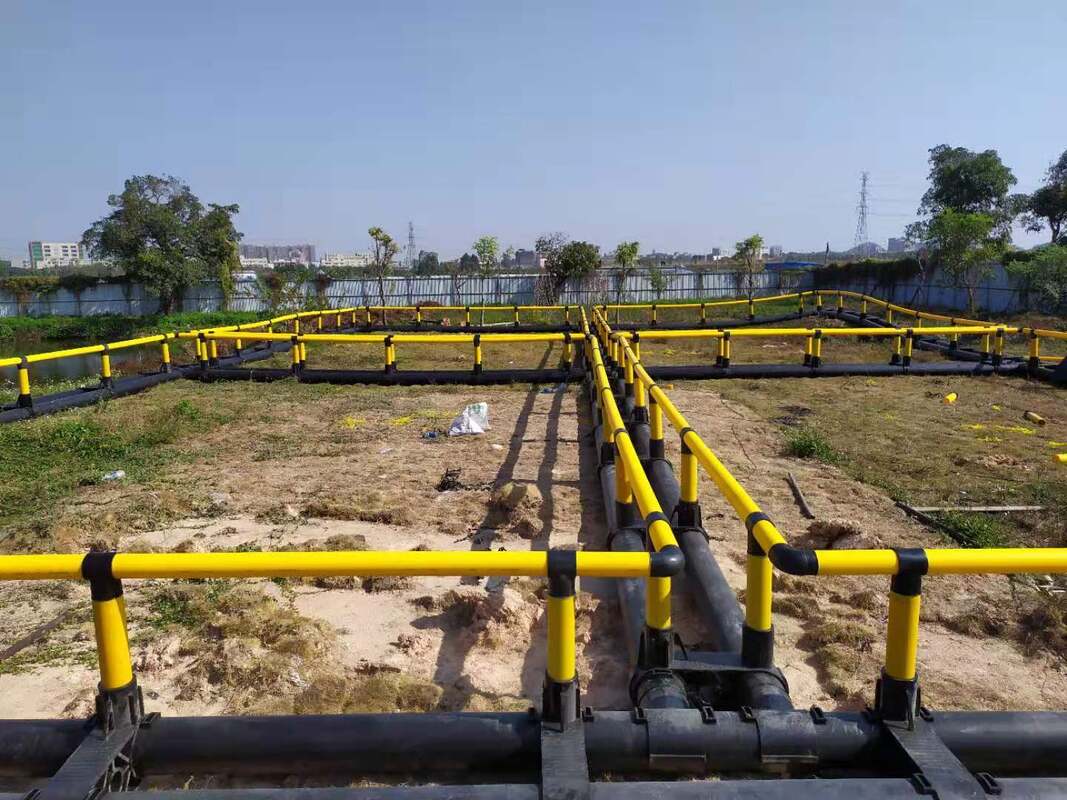

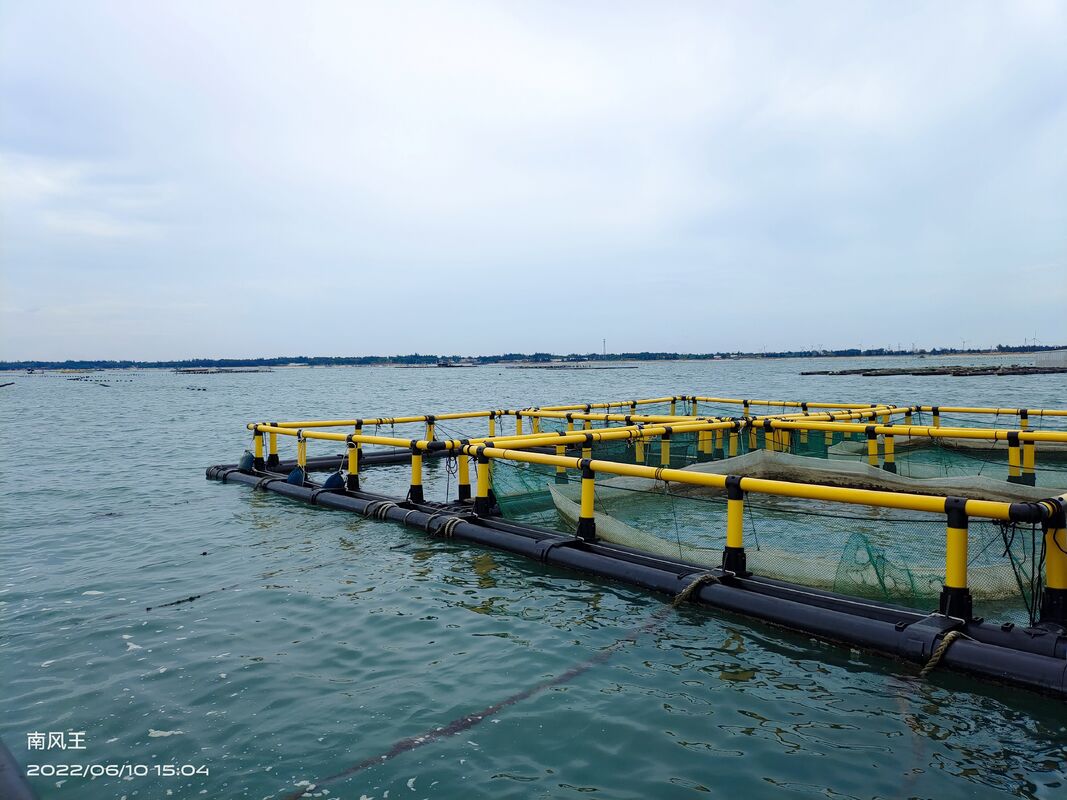

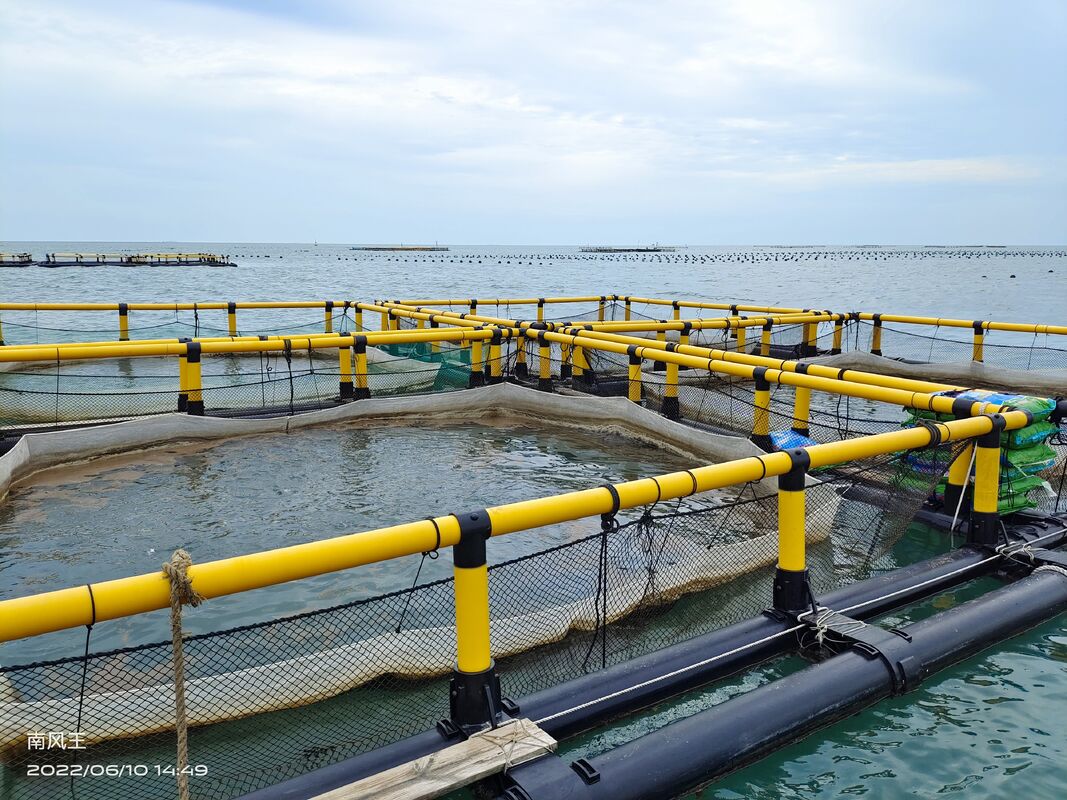

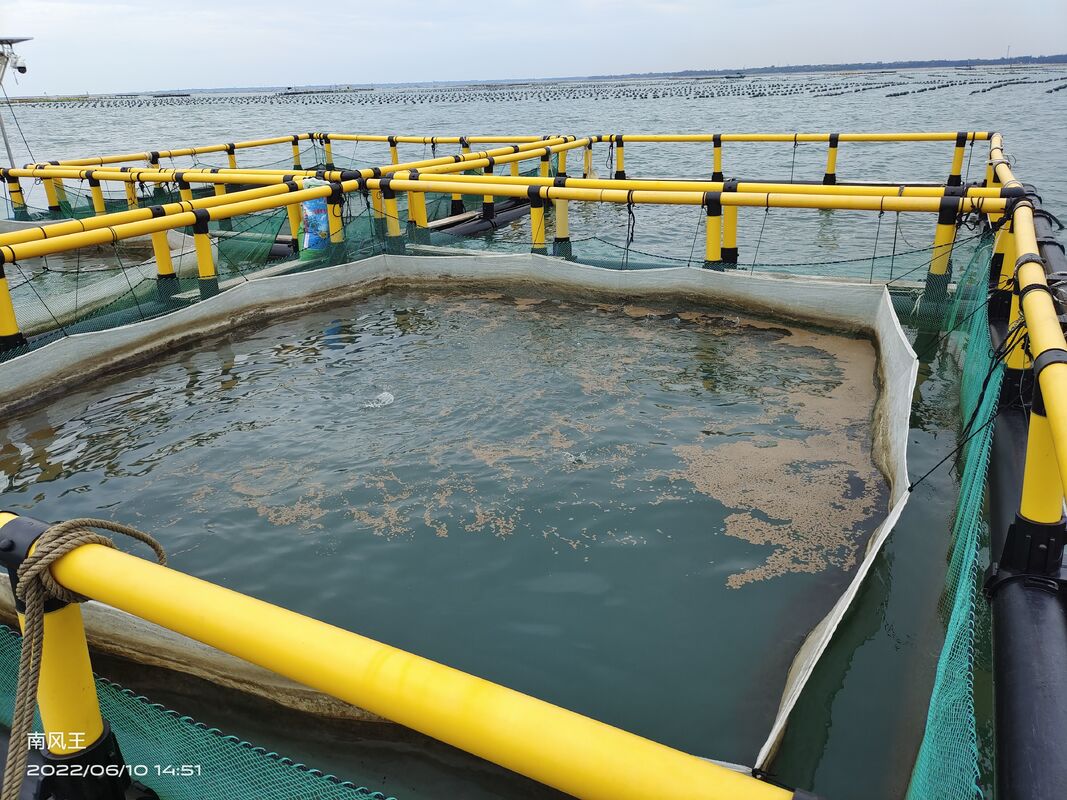

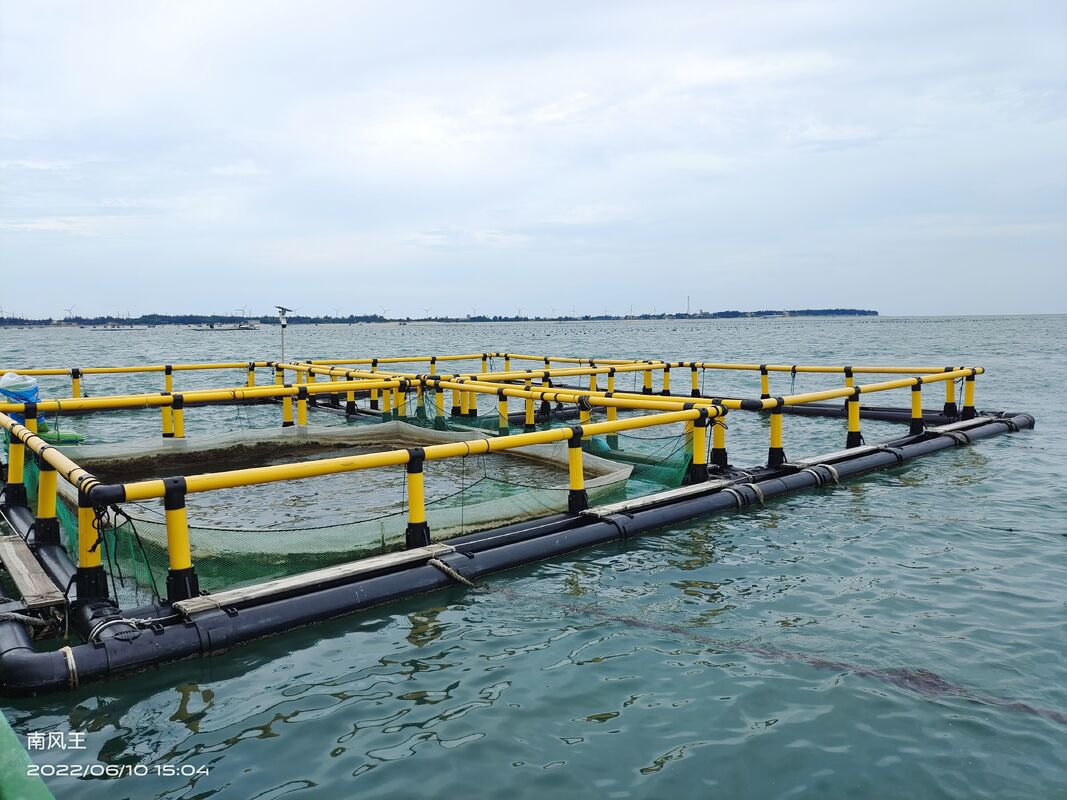

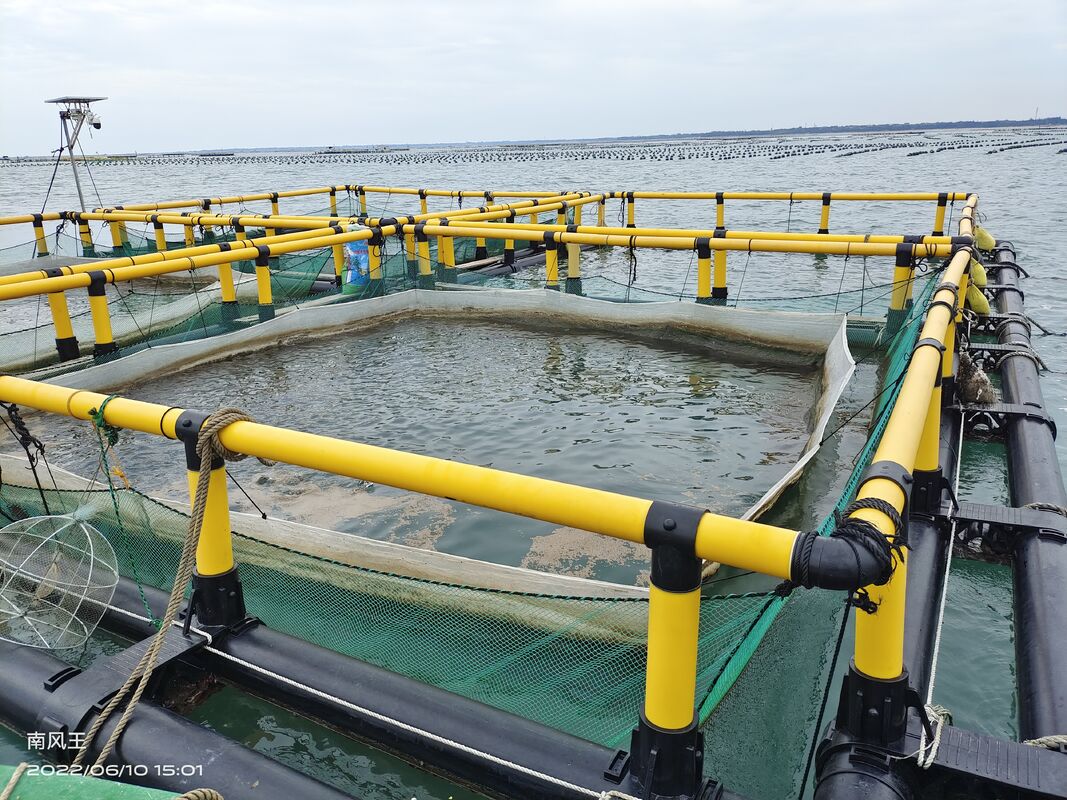

This is a simple square fish cage with a 2×2 layout. The brace spacing is 1.35 meters, equipped with 200 mm main floating pipes. Its water coverage area is approximately 182 square meters.
| Items | Specification |
|---|---|
| Main Float Pipe | Φ 200mm(caliber) × 11.9mm(wall thickness) SDR17 |
| Handrail Pipe | Φ 90mm × 8.2mm SDR11 |
| Bracket | for 200mm pipe |
| Frame Material | High-density PE100 pipe, Anti-aging and UV-resistant |
| Buoyancy System | Integrated high-buoyancy PE float modules. Suitable for 6m to 15m water depth in lakes and reservoirs |
| Anti-wave Grade | Designed for significant wave heights up to 6m, class 10 to 12 wind resistant, suitable for most Lake Victoria areas |
| Design Drawing | See pictures below |
| Unit Price (EXW Dongguan China) | USD 4700/ unit |
| MOQ | 4 unit (available for trial) |
| Lead Time | 7–10 working days after deposit |
This model is reinforced in key structural parts to withstand the typical wind and wave conditions along Lake Victoria
To ensure your trial runs smoothly, we provide complete after-sales support:
- Installation tools included with the cage shipment
- Detailed installation video guide and step-by-step manual
- Custom anchoring system design based on your farm's water depth, seabed conditions, and local wave data
- Custom netting solution tailored to your target fish species (e.g., milkfish, tilapia, salmon) and growth stage
If you share your farm's specific location and conditions, we can also adjust the cage design to better fit your environment.
We totally support your idea of testing with one unit first. This trial will let you see the cage's performance in your area before scaling up.
If you'd like to proceed with this model, I can send you the full technical drawing and proforma invoice right away.
Feel free to let me know if you have any questions, or if you'd like to adjust any parameters.
